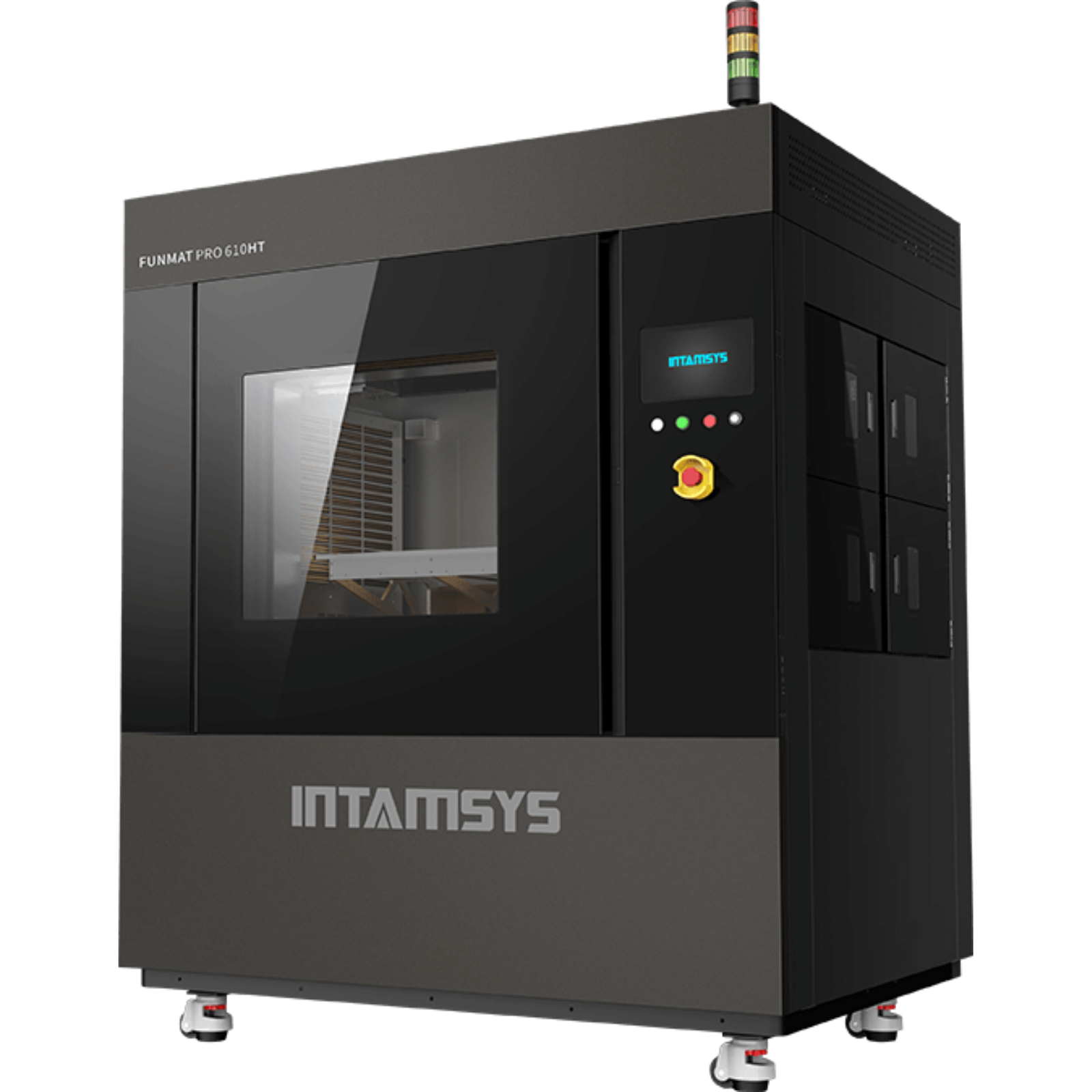

Intamsys FUNMAT PRO 610 HT
Intamsys FUNMAT PRO 610 HT – Image 2
Intamsys FUNMAT PRO 610 HT – Image 3
Intamsys FUNMAT PRO 610 HT – Image 4
Intamsys FUNMAT PRO 610 HT – Image 5
Intamsys FUNMAT PRO 610 HT – Image 6
Intamsys FUNMAT PRO 610 HT – Image 7

Intamsys FUNMAT PRO 610 HT

1,090,900.00 DH (HT)

The FUNMAT PRO 610 HT is the latest addition to the INTAMSYS 3D printers FUNMAT serie.
It is an industrial high-end machine designed for critical requirement functional part test & low volume production.
The high build volume of 610x508x508mm enables you to print big size parts.

Sur commande

UGS : 3DW9SY6DR753P Catégories : , Étiquettes : ,

Description

The FUNMAT PRO 610 HT is the latest addition to the INTAMSYS 3D printers FUNMAT serie.
It is an industrial high-end machine designed for critical requirement functional part test & low volume production.
The high build volume of 610x508x508mm enables you to print big size parts.

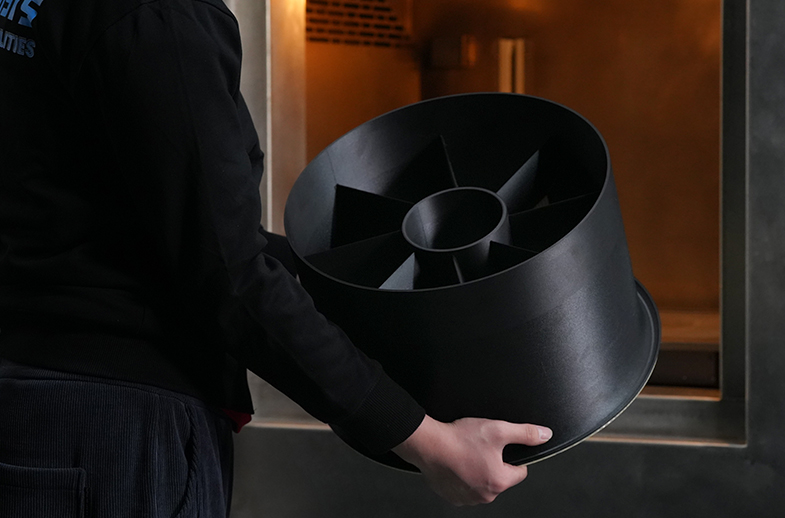

high build volume

high build volume

THE SYNERGY OF HIGH BUILD VOLUME AND VERY HIGH TEMPERATURE THERMAL DESIGN

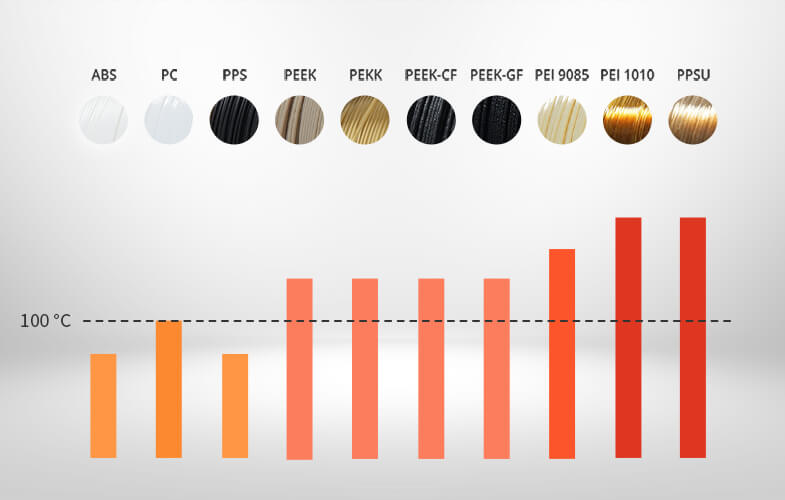

EXTREMELY HIGH TEMPERATURE FOR PRINTING BIG SIZE FUNCTIONAL MATERIALS SUCH AS PEEK, ULTEM (PEI) & PPSU WITHOUT WARPAGE & DELAMINATION.

ADVANCED

THERMAL

SYSTEM

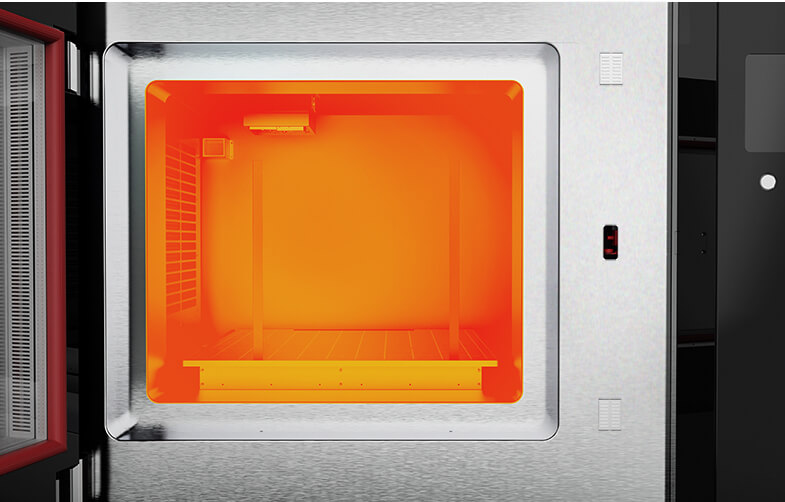

ADVANCED THERMAL SYSTEM
ULTRA-HIGH RESOLUTION

50-MICRON

ULTRA-HIGH RESOLUTION

AMAZING PRECISION. SPECTACULAR DETAILS.
DESIGNED FOR INDUSTRIAL QUALITY 3D PRINTING.

MULTI-MATERIAL CAPABILITY

MULTI-MATERIAL CAPABILITY

OPEN MATERIALS SYSTEM

OPEN MATERIALS SYSTEM

Printing Technology Fused Filament Fabrication (FFF)
Build Volume 610 x 508 x 508 mm
Build Platform Vacuum System
Leveling Automatic Leveling
Layer Thickness 0.05-0.5mm
Printing Speed XY: Max. 500mm/s  Z: Max. 300mm/s
Printing Nozzles 2 Printing Nozzles Without Scratching
Extruder Temperature Max. 500°C
Platform Temperature Max. 300°C
Chamber Temperature Max. 300°C
Filament Chamber Temperature Max. 70°C
Input File Type STL, OBJ
Filament Diameter 1.75mm/2.85mm
Position Resolution XY: 12µm  Z: 7µm
Motor Drive High Precision Servo System
Smart Monitor & control Auto-cleaning Nozzles, Filament Jam Warning, Filament Absence Warning, Power Failure Recovery, Water and Active Air Cooling, Over Heat Protection
Safety Certification FCC and CE
Connectivity WiFi, Internet, USB
Supported Materials PEEK, PEEK+CF, PEKK, ULTEM (PEI), PPSU, PC, PC Alloys, PA, PA+CF, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, etc.
