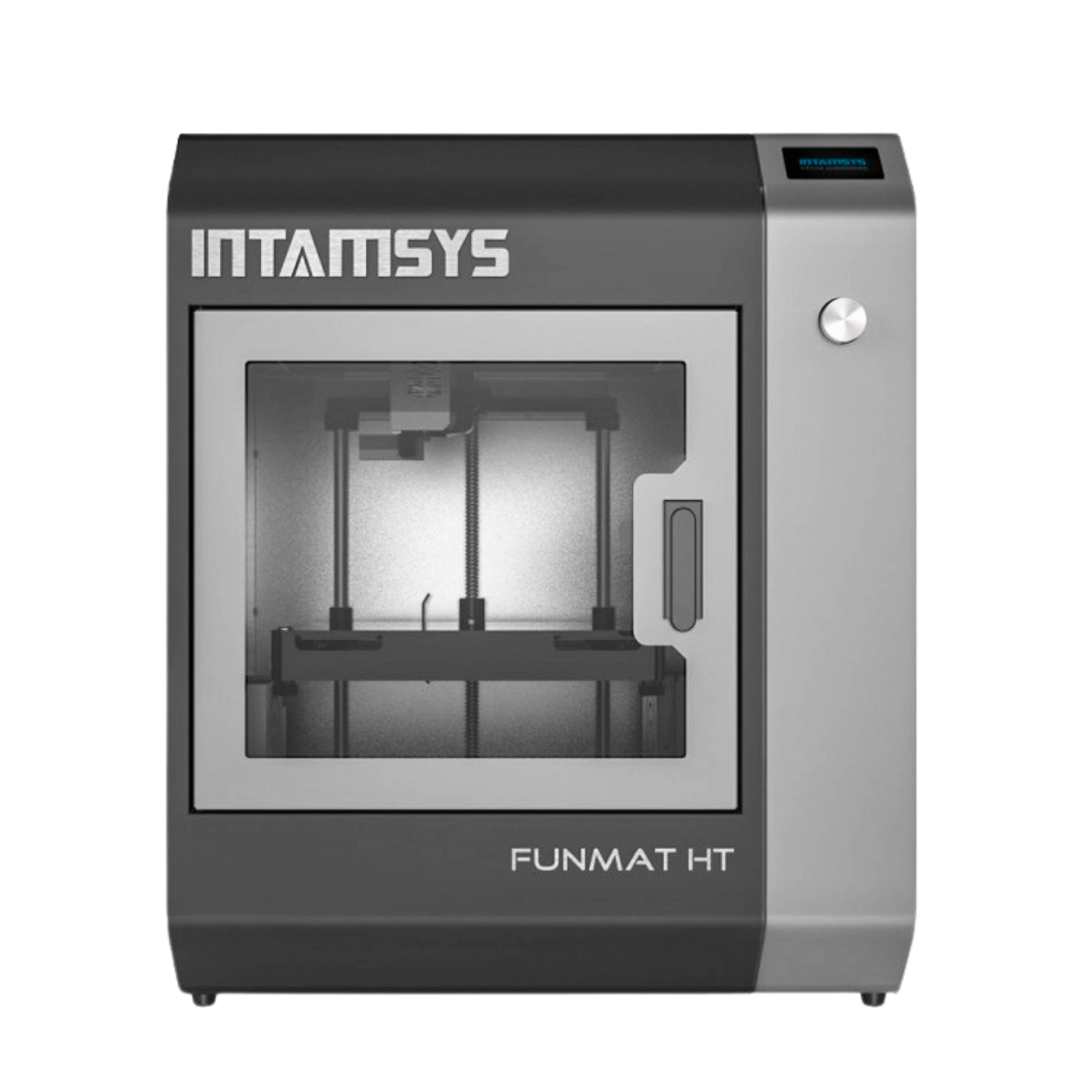

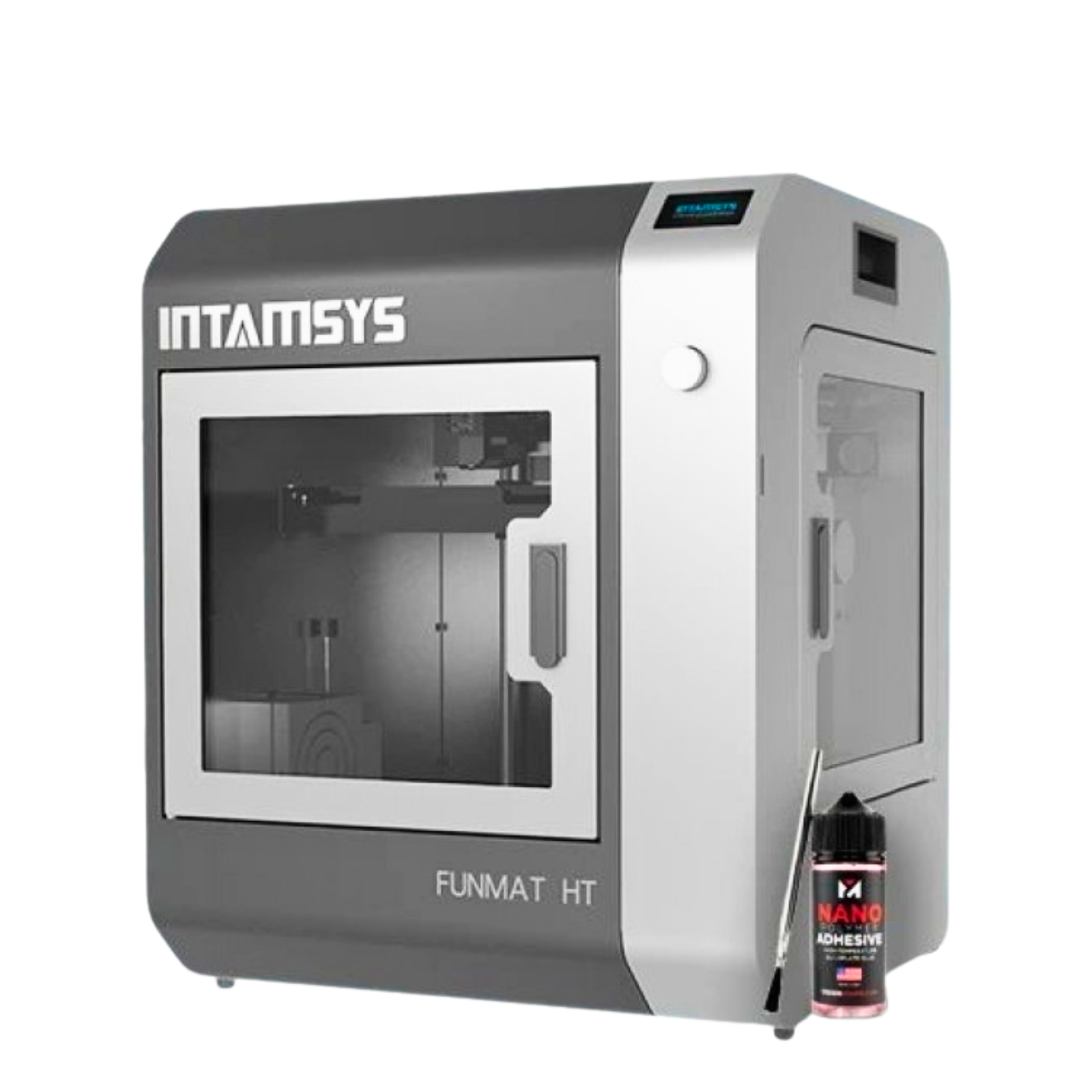

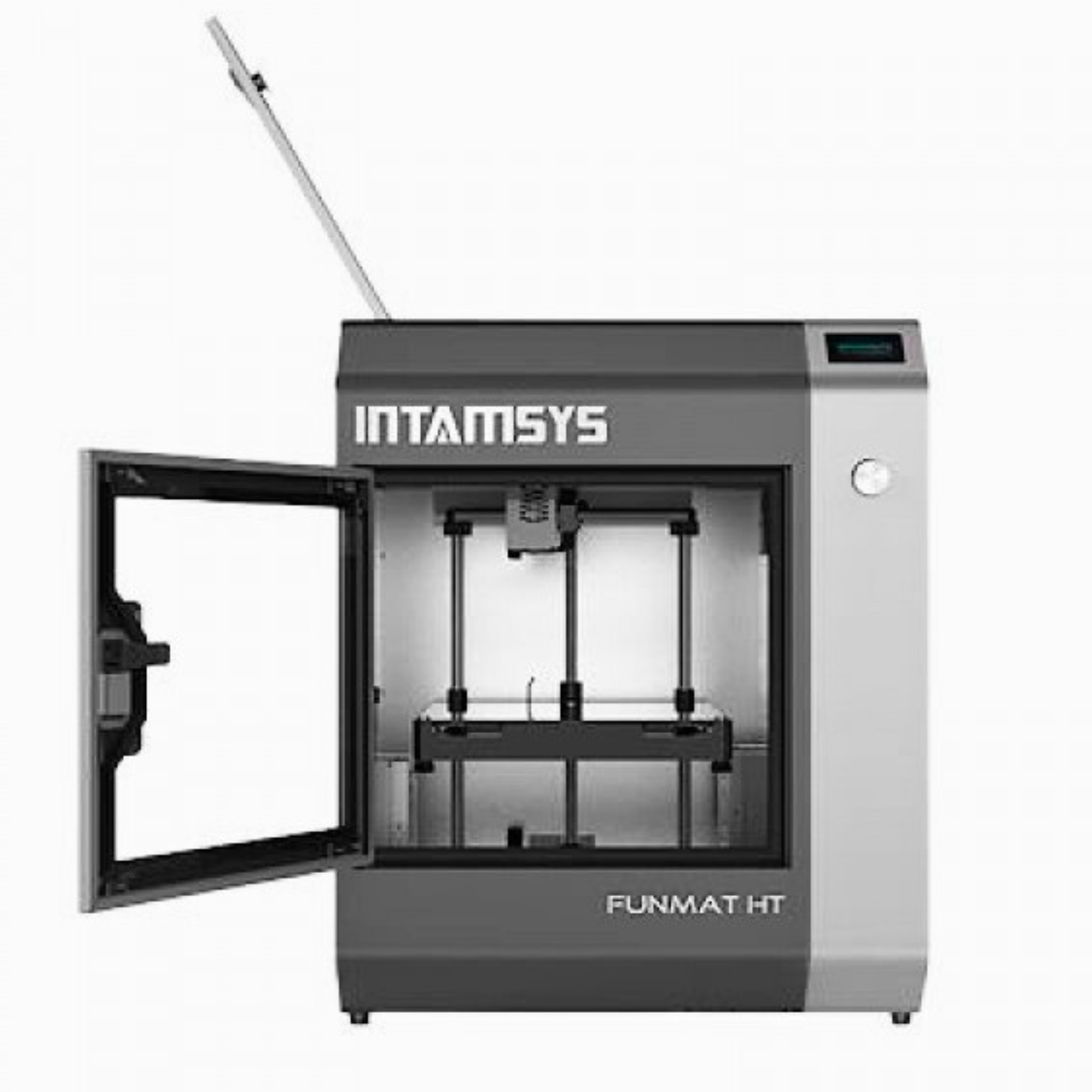

Intamsys FUNMAT HT (Enhanced)

81,809.09 DH (HT)

The FUNMAT HT is fully capable of 3D printing high-performance functional materials like PEEK, ULTEM and PPSU, in addition to a broad range of engineering thermoplastics. Users can achieve 50-micron high resolution industrial quality 3D printing of the FUNMAT HT.

En stock

UGS : 3DWQZD47QJ117 Catégories : 3D Printers, Imprimantes 3D FDM

Description

Description

ADVANCED

THERMAL

SYSTEM

50-MICRON

ULTRA-HIGH RESOLUTION

4 HIGH PERFORMANCE INDEPENDENT DRIVERS ENSURE A HIGH-PRECISION AND HIGH-SPEED PRINTING. SPECTACULAR DETAILS.

DESIGNED FOR INDUSTRIAL QUALITY 3D PRINTING.

MULTI-MATERIAL CAPABILITY

OPEN MATERIALS SYSTEM

Printing Technology	FFF
Extruder	Single
Extruder Diameter	Swappable 0.25, 0.4, 0.6 and 0.8mm nozzle, default 0.4mm
Layer Resolution	0.05-0.4mm
Position Accuracy	XY:0.025mm, Z:0.0025mm
Print Speed	30-200mm/s
Filament Diameter	1.75mm
Build Platform	PI + Glass Ceramics
Supported Filament	PEEK, PEKK, PEI, PPSU, ABS, PC, Nylon, Carbon Fiber-Filled, PETG, PVA, PLA, TPU, HIPS, Woodfill, Metalfill, etc.
Language	Chinese & English
User Interface Features	Full-color Touch Screen
Connectivity	SD card, USB
Camera	Yes
Power Failure Recovery	Yes
Filament Absent Warning	Yes
Build Plate Leveling	Auto Leveling, Manual Leveling
Build Volume	10.3″10.3″10.3″(260260260mm)
Dimensions	530490645mm
Weight	46kg
Heated-Plate Temperature (MAX)	160°C
Extruder Temperature (MAX)	450°C
Heated Chamber (MAX)	90°C
Software	INTAM-Suite (free 3D printing slicing software); Compatible Software: Simplify3D & Cura
Input Supported File Type	.Stl, .Obj, .Obj, .X3D
Output Supported File Type	Gcode
Operating Environment	Temperature: 15°C To 32°C Humidity: 30% To 70%
Storage Environment	Temperature: 0°C To 54°C Humidity: 10% To 85%
Material Storage Environment	Temperature: 13°C to 24°C Humidity: 20% To 50%
Voltage Input	100~120VAC (110V Version only, refer to the nameplate) 200~240VAC (220V Version only, refer to the nameplate) 47~63Hz
Power	1200W
