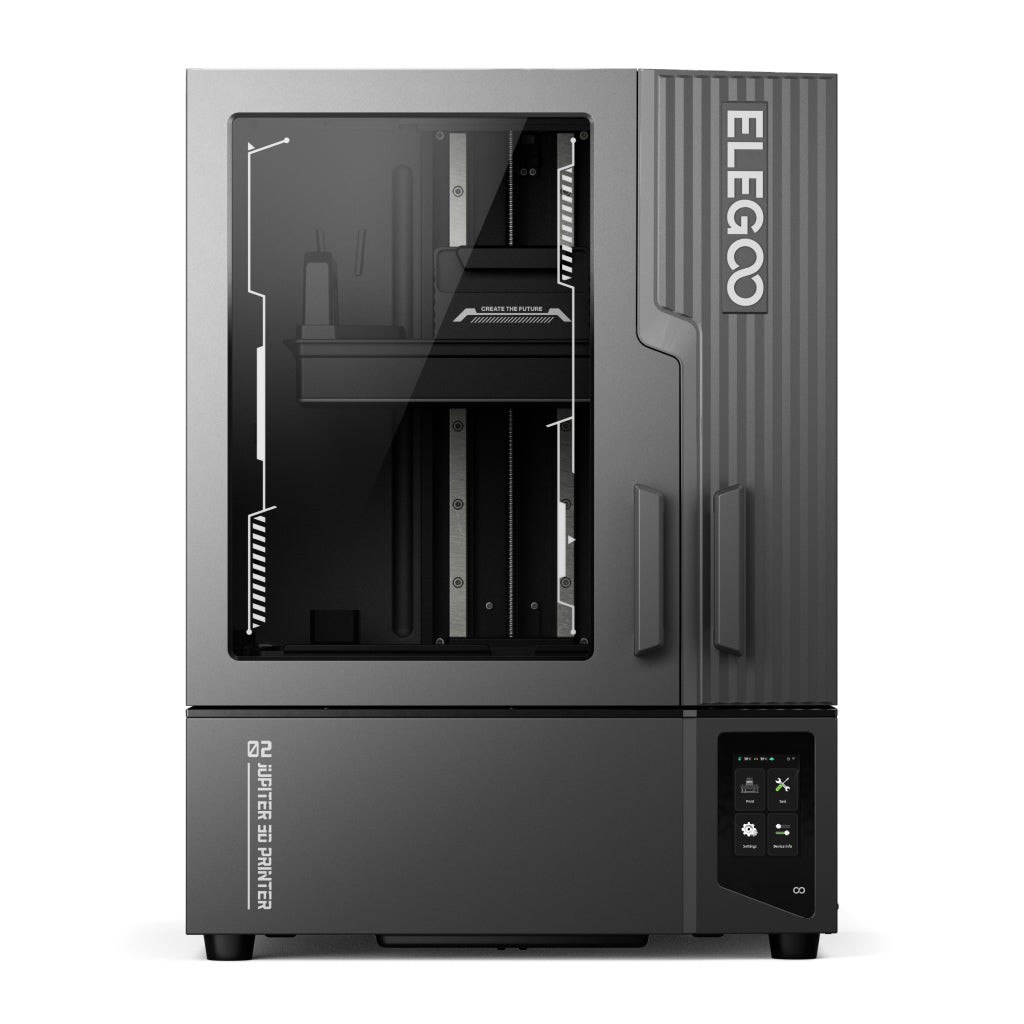

ELEGOO Jupiter 2 — imprimante 3D résine grand format 16K

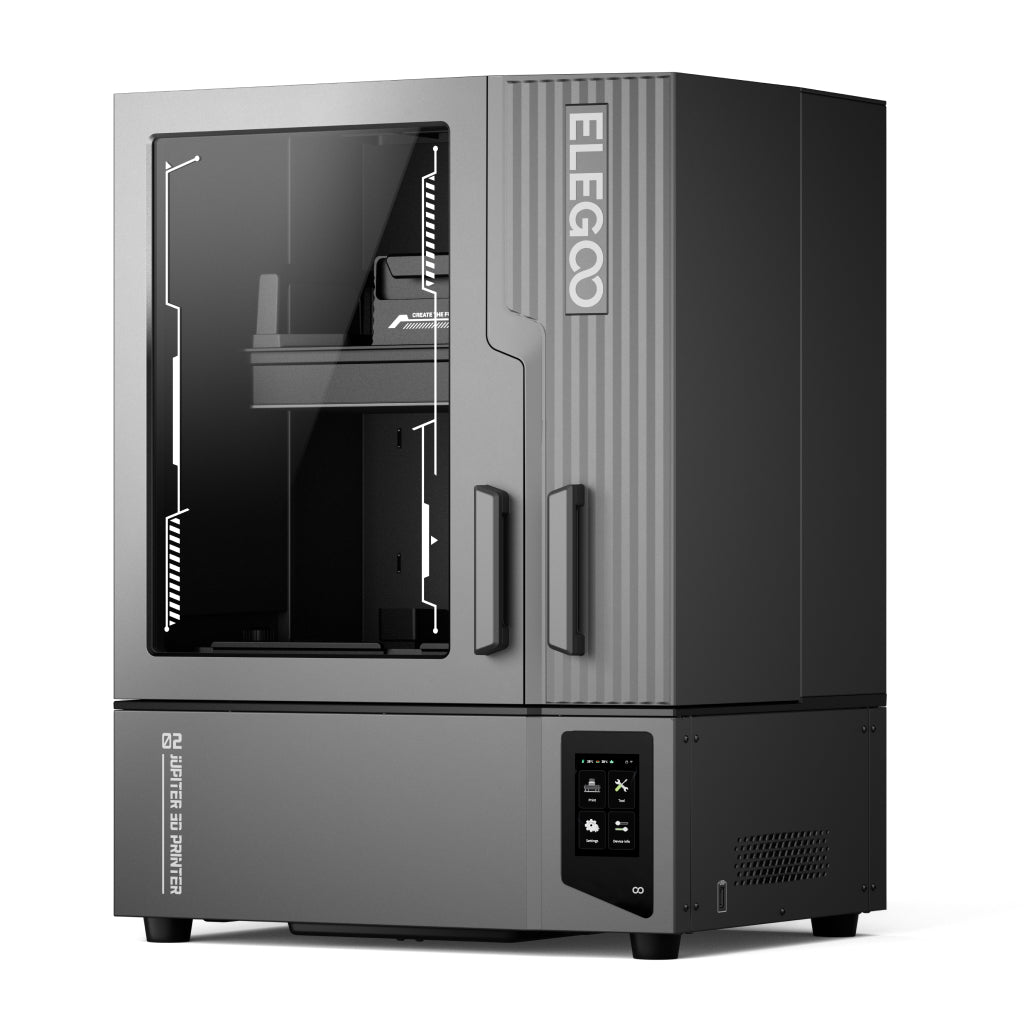

ELEGOO Jupiter 2 — vue trois quarts

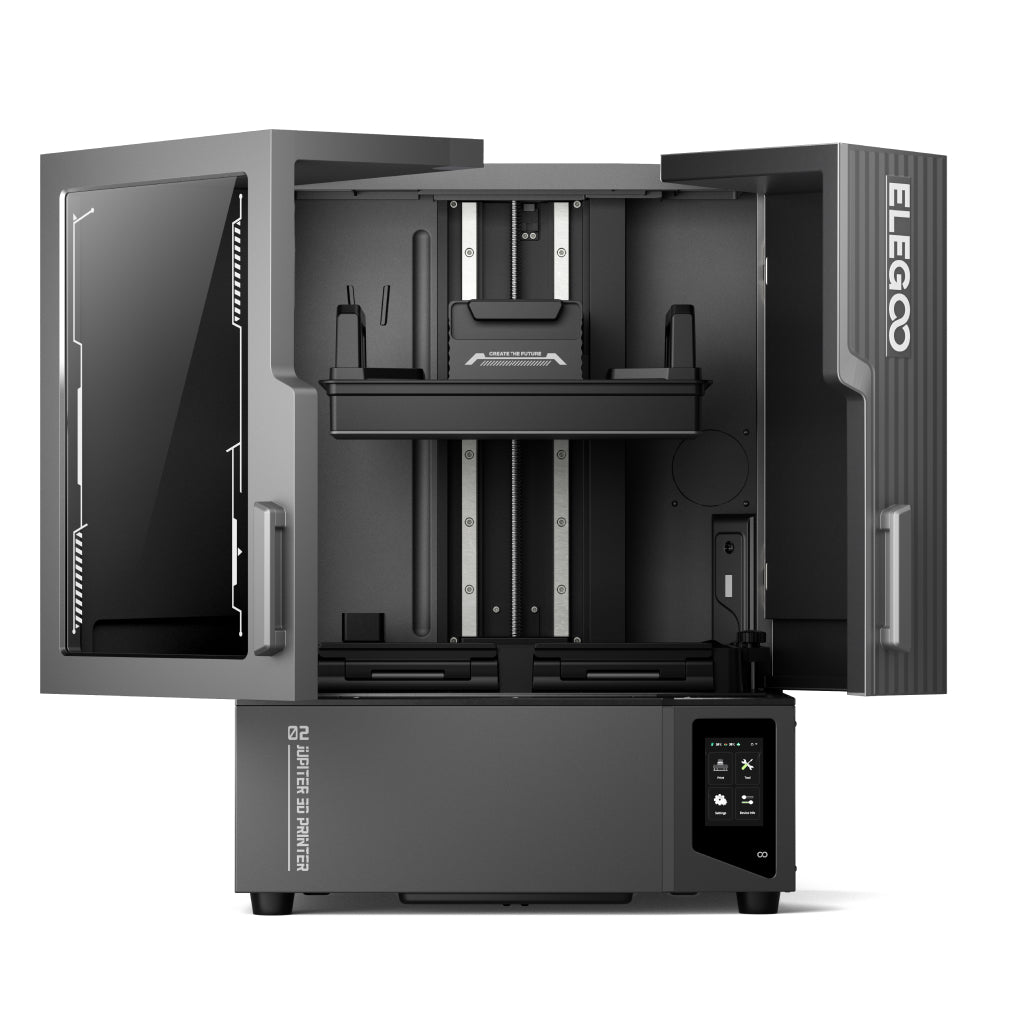

ELEGOO Jupiter 2 — double porte ouverte

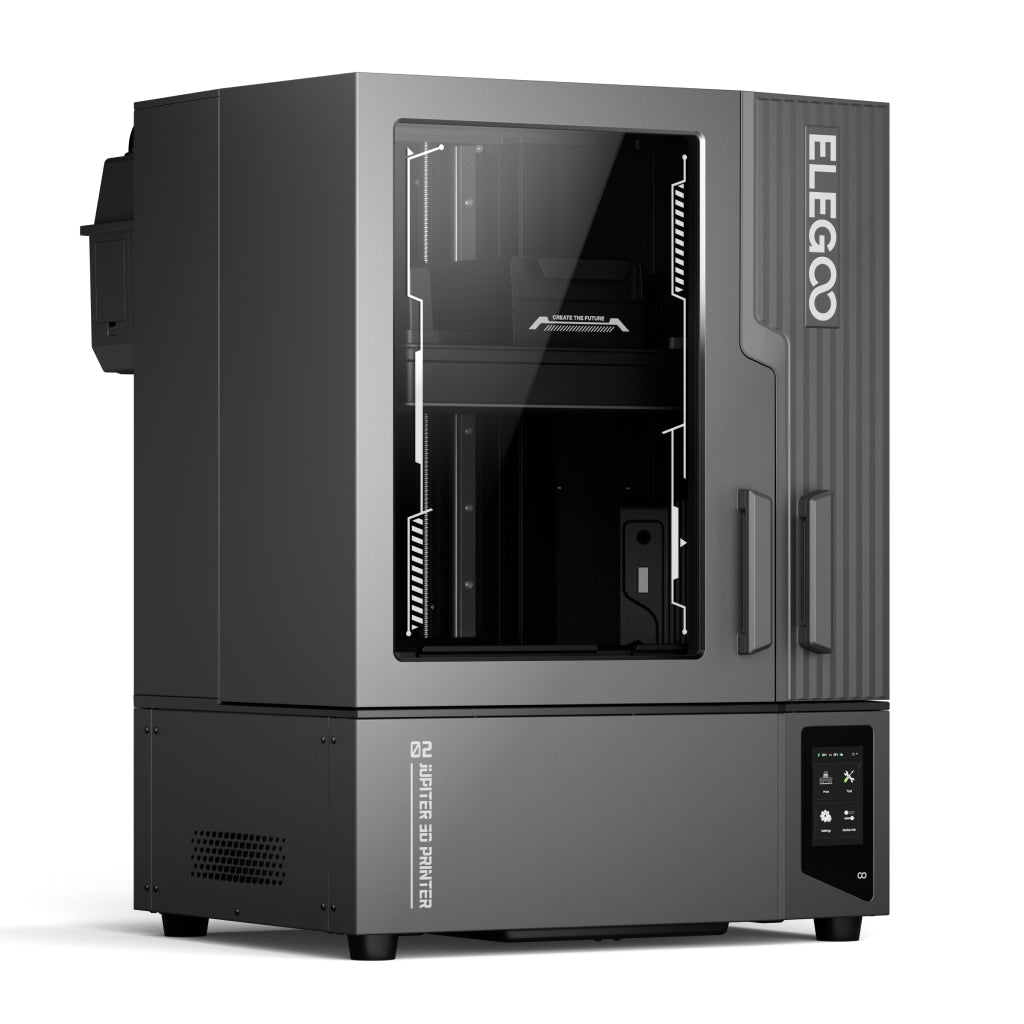

ELEGOO Jupiter 2 — vue de profil

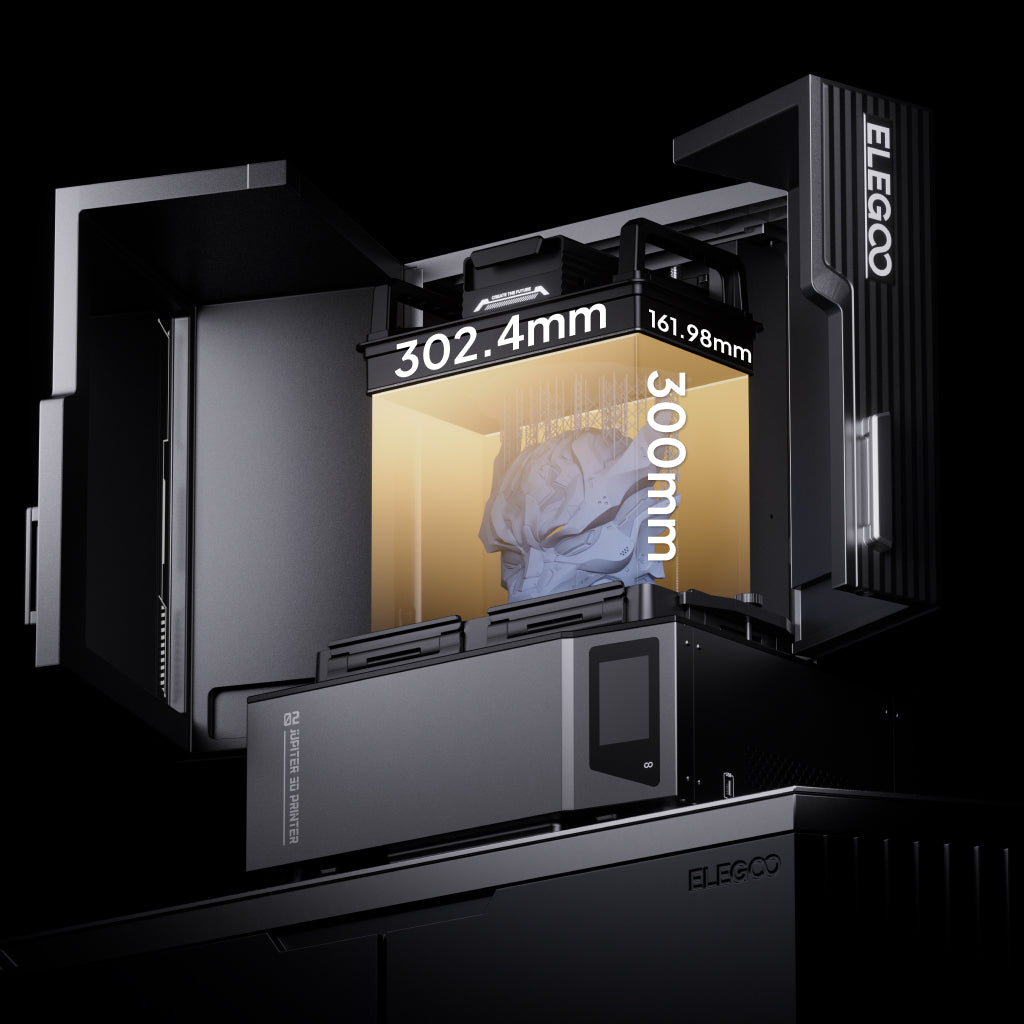

ELEGOO Jupiter 2 — volume d'impression 302 x 162 x 300 mm

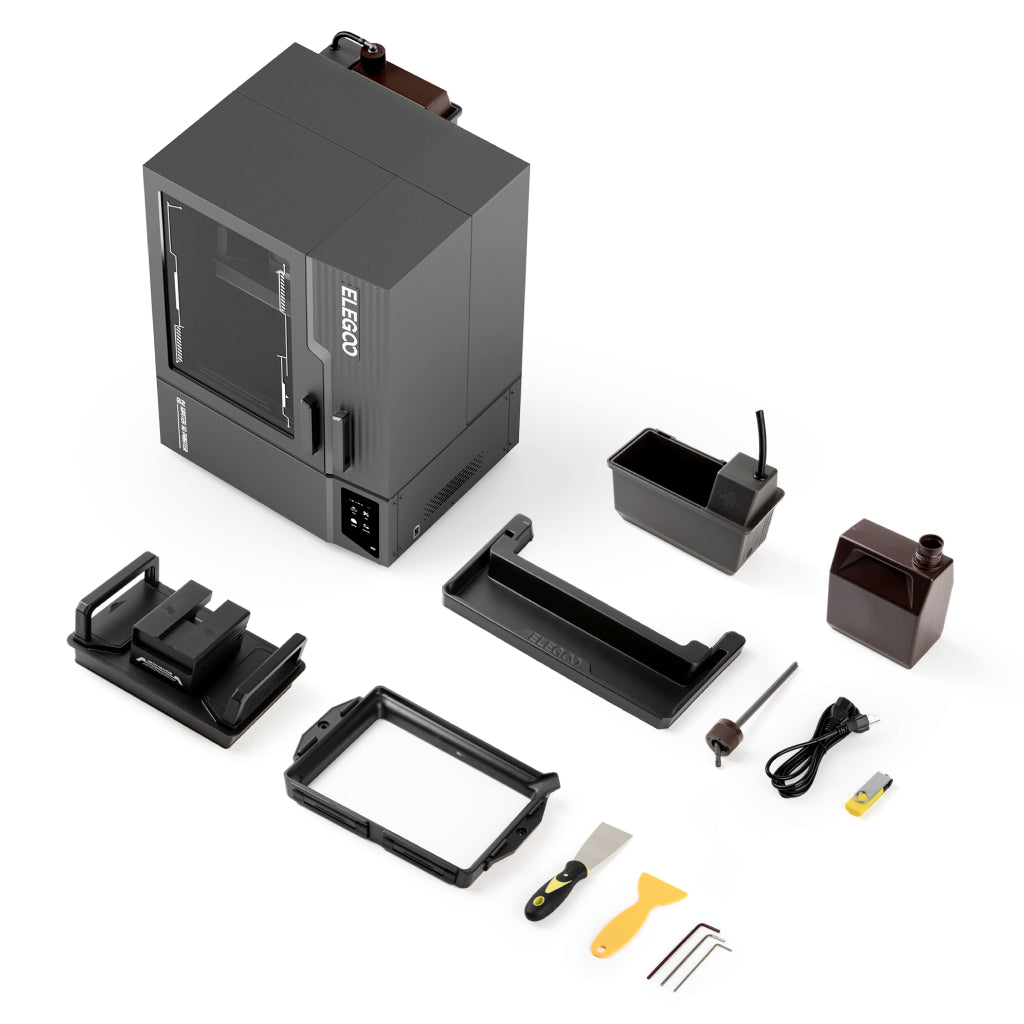

ELEGOO Jupiter 2 — contenu de la boîte

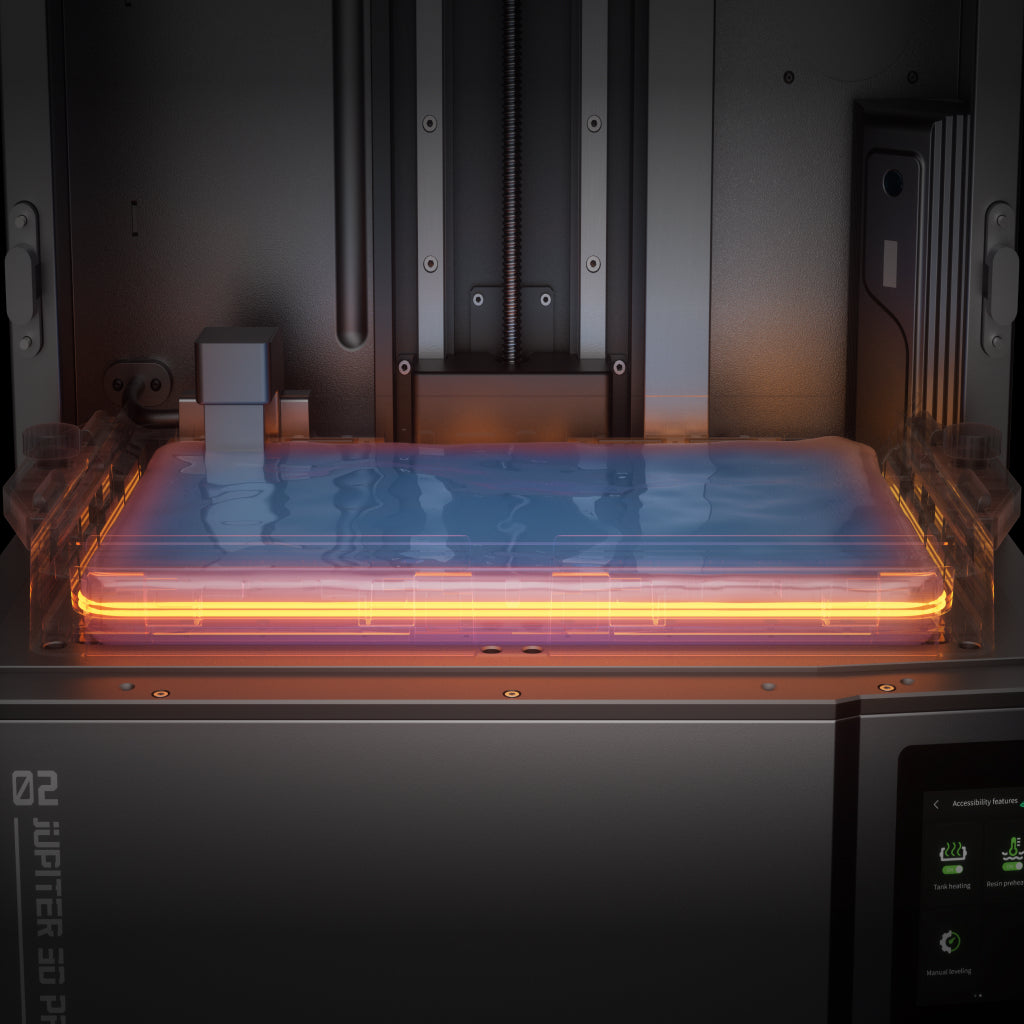

ELEGOO Jupiter 2 — cuve chauffante intelligente 30 °C
ELEGOO Jupiter 2 — alimentation et recyclage automatiques de résine

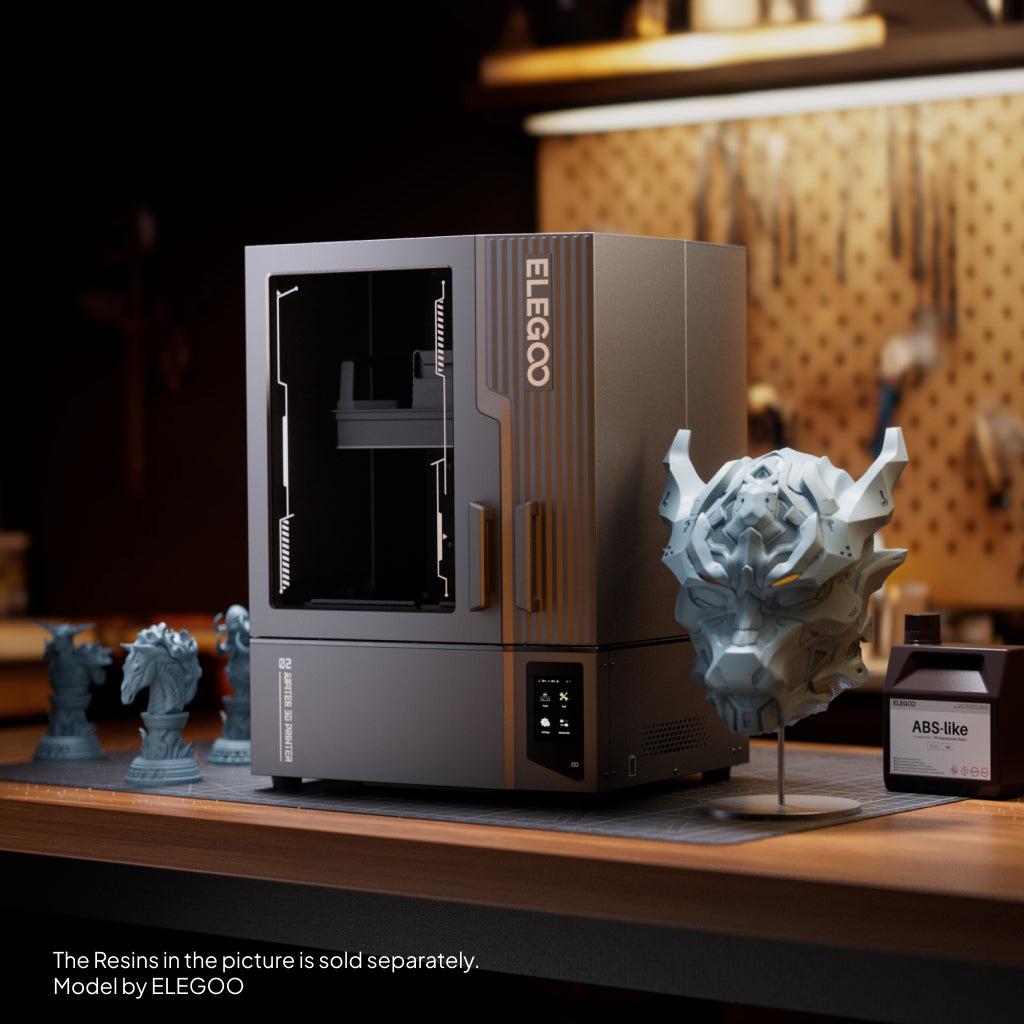

ELEGOO Jupiter 2 en situation avec une pièce imprimée
Masque imprimé sur ELEGOO Jupiter 2
Figurine 16K imprimée sur ELEGOO Jupiter 2

Jupiter 2-EU PLUG

13,627.27 DH (HT)

Imprimante 3D résine MSLA grand format. Écran LCD 14″ 16K (15120 x 6230), volume d’impression 302 x 162 x 300 mm, nivellement automatique multipoints, cuve chauffante 30 °C, alimentation et recyclage automatiques de résine, caméra intégrée et Wi-Fi. Livrée avec prise EU.

En stock

Download Catalog
UGS : JUPITE-FACFD Catégories : , Marque :

Description

The ELEGOO Jupiter 2 is a large-format MSLA resin 3D printer built for studios, workshops and production users. Its 14-inch 16K monochrome LCD covers a 302 x 162 x 300 mm build area — around 2.5 times the volume of a Saturn 4 — so you can print large models in fewer sections, or fill the plate with a full batch of miniatures and functional parts in a single job.

Key features

  • 14″ 16K monochrome LCD (15120 x 6230) — 20 x 26 µm XY resolution for crisp textures, clean edges and smooth surfaces across the whole plate.
  • Fully enclosed COB light source with Fresnel collimating lens — no light leakage and uniform exposure from centre to corner.
  • Multi-point automatic levelling — four independent force sensors calibrate the plate for a reliable first layer, with manual levelling available as a fallback.
  • Smart heated resin tank (30 °C) — improves resin fluidity and layer adhesion for sharper detail and more consistent results, with quick-lock mounting.

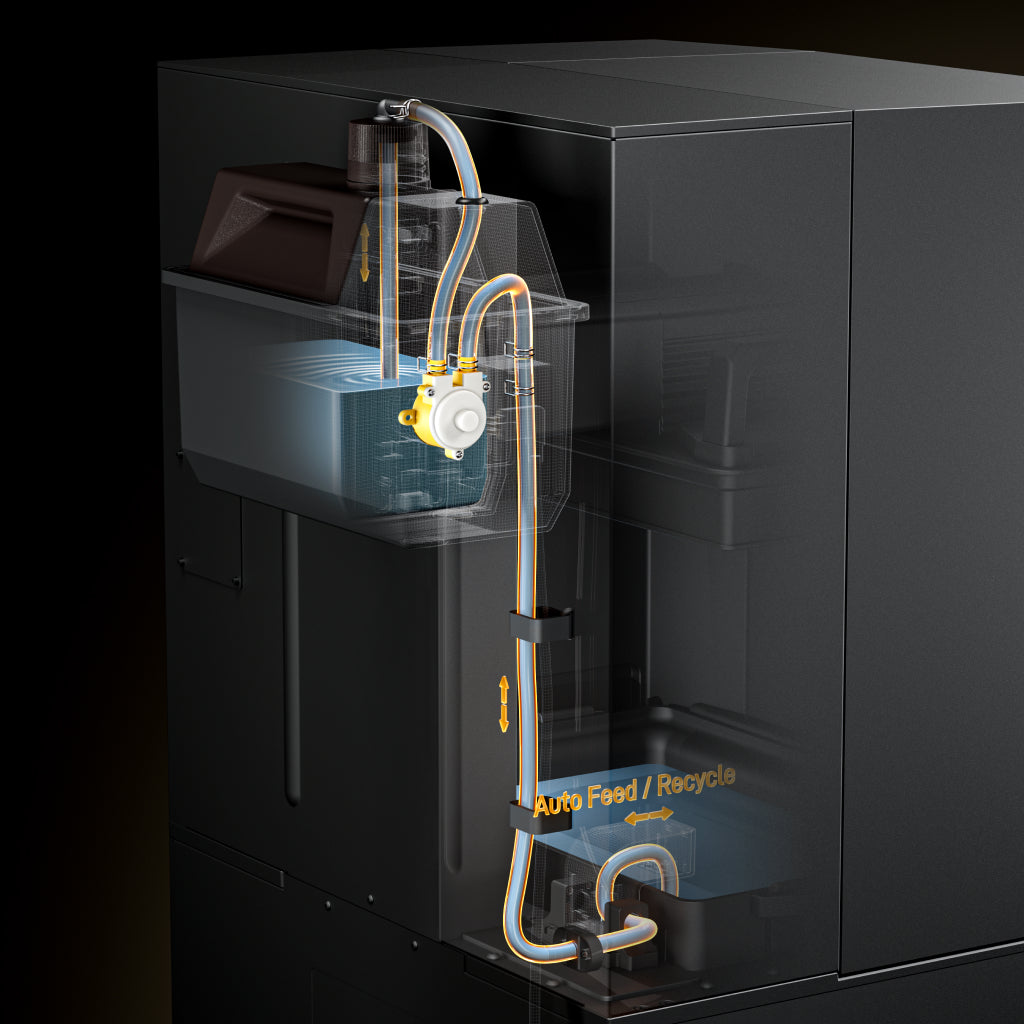

  • Automatic resin feeding and recycling — a two-way pump works with a 2 kg ELEGOO resin bottle to refill and recover resin during the print, with low-level alerts before a shortage can ruin a job.
  • Built-in chamber camera with LED — real-time remote monitoring and time-lapse capture.
  • Smart mechanical sensor — detects resin residue to protect the LCD, and alarms on resin shortage and levelling failure.
  • Protection built in — directional LCD cooling, automatic pause if LED temperature exceeds 80 °C, and power-loss recovery that resumes the print where it stopped.
  • Modular quick-swap release film and LCD — consumables and screen can be changed quickly without a full teardown.
  • Wi-Fi cluster management — drive several ELEGOO machines from one device for batch production.

Specifications

Technology MSLA resin (LCD masked stereolithography)
Build volume 302 x 162 x 300 mm
LCD screen 14″ 16K monochrome
Resolution 15120 x 6230 px
XY resolution 20 x 26 µm
Light source COB + Fresnel collimating lens, fully enclosed
Levelling Automatic, multi-point (4 force sensors)
Resin tank Smart heating to 30 °C, quick-lock
Resin handling Automatic feeding and recycling, 2 kg bottle, bottle-level monitoring
Monitoring Built-in camera with LED, real-time view and time-lapse
Touchscreen 4.0″ capacitive
Connectivity USB and dual-band Wi-Fi, OTA firmware updates, 8 GB ROM
Software ELEGOO SatelLite slicer, ELEGOO Matrix app, Nexprint model library
Resin compatibility Most 405 nm UV-curing resins
Exhaust Rear 75 mm connection
Enclosure Double-door design with transparent viewing window, resin drip tray, laser-engraved build plate
Power plug EU

Good to know

Resin, isopropyl alcohol and post-processing equipment are sold separately. A wash-and-cure station such as the ELEGOO Mercury Plus is recommended for parts of this size. The Jupiter 2 is compatible with the ELEGOO Marsmate air purifier, whose activated-carbon filter removes up to 95% of TVOC — worth considering for an enclosed workspace.

Note: for full-height prints, the resin tank must be removed to lift the model off the plate. Printed models shown in the photos are examples of what the machine can produce and are not included.
