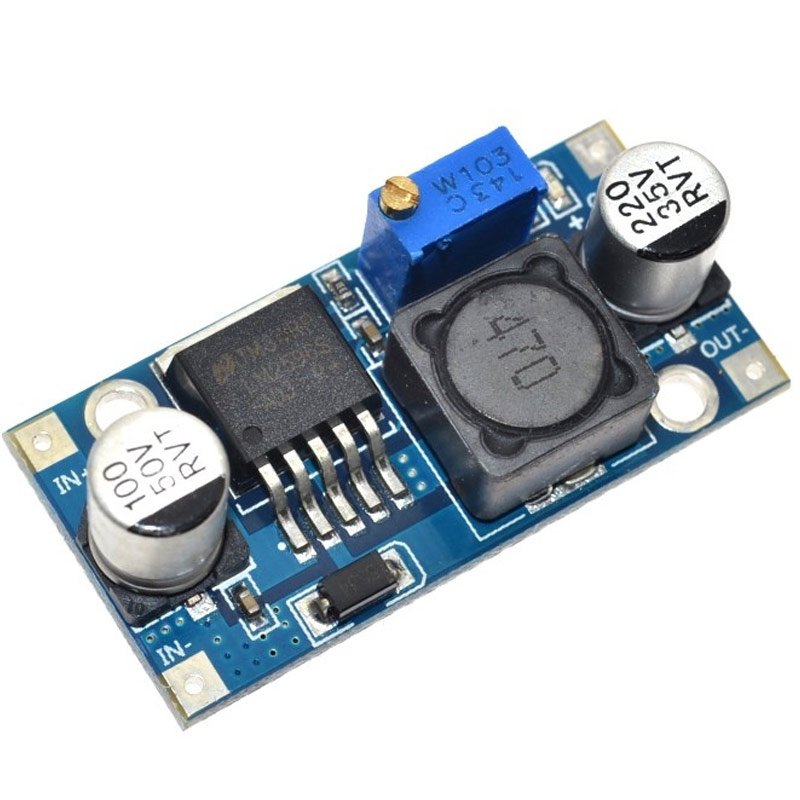

Convertisseur DC-DC adjustable LM2596

Description

The LM2596 adjustable DC-DC converter (Morocco version) is a switching voltage regulator widely used in electronic projects. It converts a direct current (DC) input voltage into a lower, adjustable DC output voltage. Here is the operating principle of the LM2596 adjustable DC-DC converter:

1. Switching Topology:
   The LM2596 uses a switching topology, also known as a buck converter, to regulate the output voltage. This topology enables efficient voltage conversion using switching elements (MOSFET transistors) and inductors.
2. Control circuit:
   The LM2596 converter features an integrated control circuit that regulates the switching operation. This circuit controls the switching cycle duration and switching frequency to achieve the desired output voltage.
3. Inductor and Diode:
   The LM2596 uses an inductor and a diode to store and transfer energy. During the switching cycle, the MOSFET transistor is turned on, allowing current to flow through the inductor and storing energy. When the transistor is turned off, current continues to flow through the diode, transferring the stored energy to the load.
4. Feedback Loop:
   The LM2596 converter is equipped with a feedback loop that compares the actual output voltage with an internal reference voltage. If the output voltage is lower than the reference value, the control circuit adjusts the switching duty cycle to increase the output voltage. If the output voltage is higher than the reference value, the duty cycle is adjusted to decrease the output voltage.
5. Adjusting the output voltage:
   The LM2596 is adjustable, meaning the output voltage can be set to suit the project’s needs. This is typically achieved by adjusting the value of a potentiometer (variable resistor) connected to the converter. By turning the potentiometer, the output voltage can be increased or decreased.
6. Energy efficiency:
   The LM2596 converter is designed to offer high energy efficiency through the use of switching. This minimizes energy losses in the form of heat and maximizes the use of available energy.

The LM2596 adjustable DC-DC converter is widely used in many electronic projects to provide a regulated and adjustable output voltage from a DC power source. It is commonly used in applications such as powering electronic circuits, charging batteries, powering electronic modules, and more.
