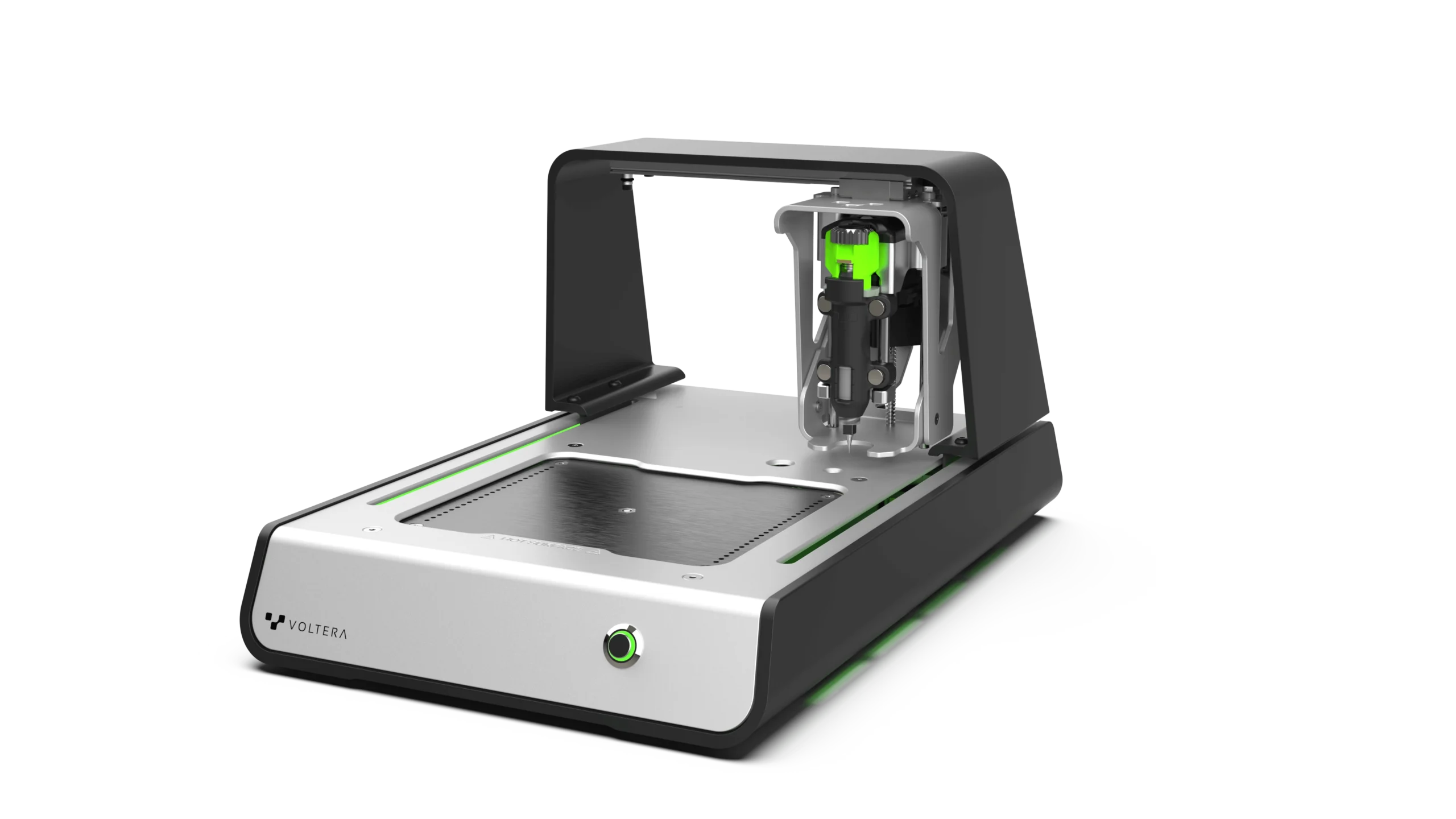

Voltera V-One PCB Print

Voltera V-One PCB Print

54,536.36 DH (HT)

En stock

Download Catalog
UGS : 3DW86QMHAM82E Catégorie :

Description

V-One features overview

  • Circuit printing

    Print conductive ink to create traces and pads.

  • Drilling

    Drill holes for through-hole components and vias for two-layer PCBs.

  • Solder paste dispensing

    Stencil-free solder paste improves solder joint quality over manual application.

  • Built-in reflow

    Reflow solder PCBs directly on the build area without a dedicated reflow oven.

Fast, hands-on, in-house PCB prototyping

  • Quicker development time

    Iterate quickly and get immediate feedback on new designs.

  • IP protection

    Protect your intellectual property by keeping your prototyping in-house instead of outsourcing it to vendors.

  • Hands-on learning

    Engage students and young professionals with new opportunities to develop technical skills while bringing projects to life.

<1hr

Print time

4.5” x 5”

Print area

Double-sided

PCBs

Solder paste dispensing and built-in reflow

  • Stencil-free soldering

    Dispense solder paste directly onto your printed circuit board (PCB) and leave expensive design-specific stencils behind. Say goodbye to stencil storage and cleanup!

  • Consistent soldering

    Automatically dispense solder paste and correct unsatisfactory pads quickly with selective dispensing, eliminating hand soldering defects.

  • Reflow for PCB assembly

    Reflow your PCB components with the built-in 550 W heater, which heats up to 240°C for up to 60 minutes — no ovens required.

Down to 0.5 mm

Pin pitch

240°C maximum

Reflow temperature

Background

Intuitive user experience

  • Easy to use

    Get hands-on with printing workflows and in-app help videos.

  • Use universal file formats

    Upload Gerber files exported from any ECAD software, and the software will generate paths automatically.

  • Hassle-free updates

    Learn about new capabilities and improvements with automatic software updates.

Gerber file compatible

Live, in-app chat
